HSH Prewired Loaded Pickguard, with Alnico 5 Humbucker & Single coil Pickups, for Fender Strat Guitar

Product Description: The product is covered with a protective film to prevent scratches and damage prior to installation on the guitar. This protective film needs to be removed before installation. Specification Parameters: Model: upgraded HSH guitar pickup guard set. Material: Alnico 5 pickups and imported copper wire. Pickup DC resistance (approximate value): Neck pickup: Alnico 5 humbucking pickup, 6-7 kOhm; hole spacing 50mm. Center pickup: Alnico 5 single-coil pickup, 6-7k ohms; hole spacing 52mm. Bridge pickup: Alnico 5 humbucker, 10-15 kOhm; hole spacing 52mm. Note: Resistance values are for reference only; actual values will vary with temperature. Potentiometers: 3 (2 CTS 500K potentiometers and 1 split-axis push-button switch potentiometer) 1V 2T. Single-cut switch: 1pc. Capacitor: 1 orange capacitor. Output Jack: 1 pc. Screws: 11 pcs. Functions and features: 5-WAY SWITCH: You can get different styles of tones, perfect for upgrading any common guitar setup. Weight: 700g/set.

• Pre-welded pickguard assembly featuring an Alnico 5 dual-coil pickup (bridge position) and two single-coil pickups (middle/neck positions). Directly replaces original Strat pickguards without additional soldering, installing in minutes.
• The dual-coil pickup delivers a thick, high-output rock tone, while the single-coil pickup maintains the crisp, bright traditional Strat sound. The versatile switching options make it suitable for a wide range of styles, from blues and rock to pop.

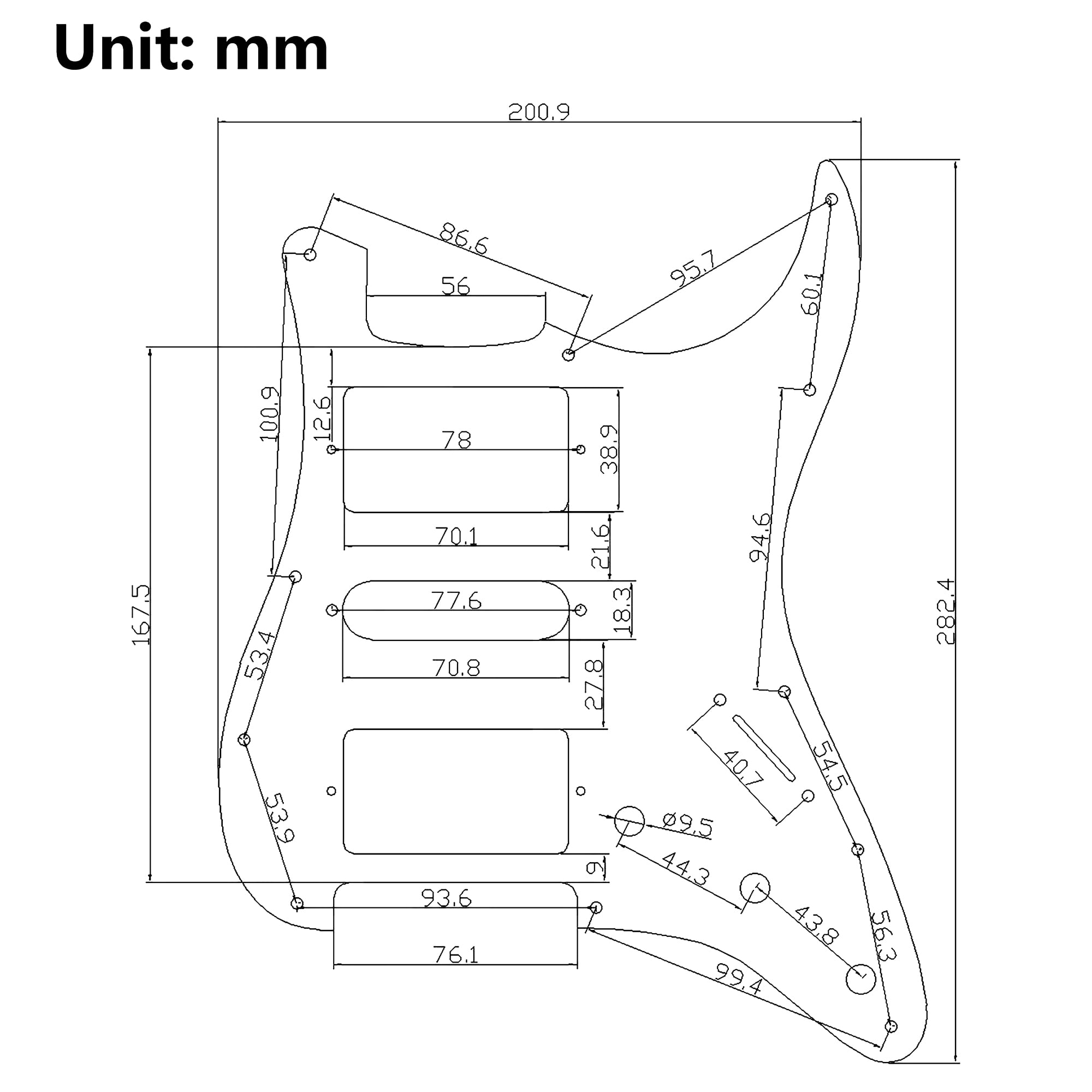

• Features a standard 11-hole Fender-spec cover plate with 250k potentiometers and a 5-way switch. Includes knobs and pickup covers for a complete, plug-and-play upgrade that enhances both tone and aesthetics.
