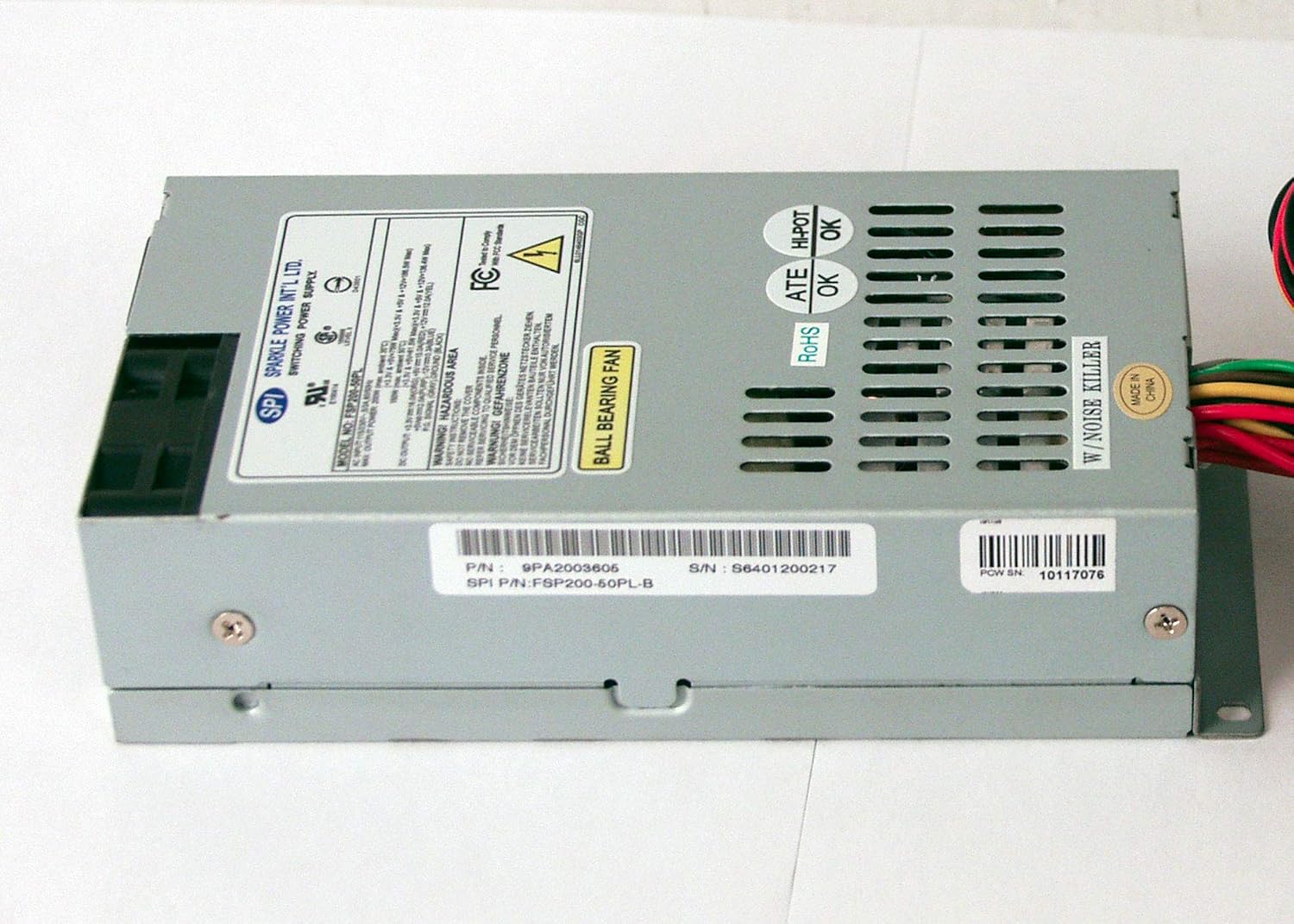

SPI FSP200-50PL-B 200W Flex ATX 20-PIN 4CM BB Fan Power Supply

Key Features AC Input 115V - 230V MTBF 100,000 hours on maximum load at +25° C degree Warranty 1 Year Output Power 200 W Form Factor Flex ATX Dimensions WxDxH 3.2" x 6" x 1.6" Detail Specifications - Complied with Flex ATX and ATX12V standard - High efficiency and reliability - Remote On/Off function - Internal 12V DC fan included - Noise Killer (Thermal fan speed control function) - Low noise and ripple - Complies with FCC part 15 subpart J Class B and CISPR 22 Class B - Output over voltage, short circuit, and over current protection - 100% Hi-pot, ATE, and burn-in tested - Re-settable power shut down - Approved by UL 1950, CSA C22.2 Level 3 Input Range - 90~132/180~264V AC, Manual Selection Frequency - 47~63Hz Input Current - 5A (RMS) @115V AC, 3A (RMS) @230V AC Inrush Current - 50A Max for 115V AC, 80A Max for 230V AC Cold start Temperature Range - Operating 0° C ~ +25° C on full load; storage & shipping -20° C ~ +80° C Humidity - 95% on operating and 95% on storage Dielectric Withstand - Input to frame ground 1800V AC for 1 second Efficiency - 72% at minimum measured at nominal AC main voltage and frequency with maximum load on all output Rise Time - Less than 20ms Hold-up Time - 17ms minimum at nominal input voltage Power Good Signal - Power on delay time 100 ms to 500 ms, off delay 1ms minimum (TTL and CMOS compatible) Leakage Current - Not exceed 0.75mA at 115V AC, 60Hz MTBF - 100,000 hours on maximum load at +25° C degree Dimension (WxHxL) - 81.5x40.5x150mm/3.2¿x1.6¿x6¿ inches Weight - 3.00lbs Warranty - 1 year

• Output Power: 200 W
• Efficiency: 72%
• Form Factor: Internal
